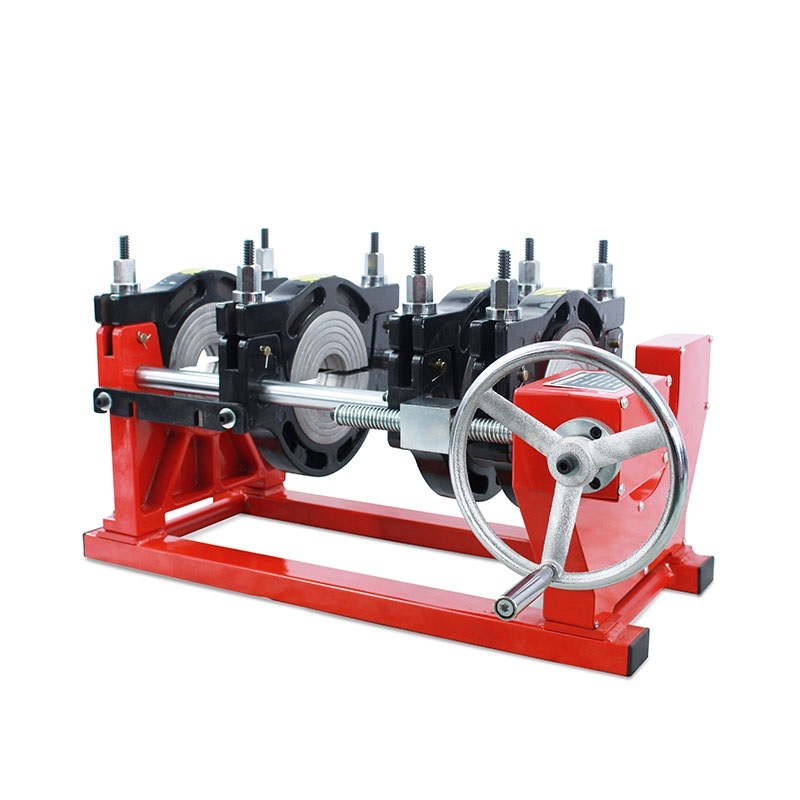

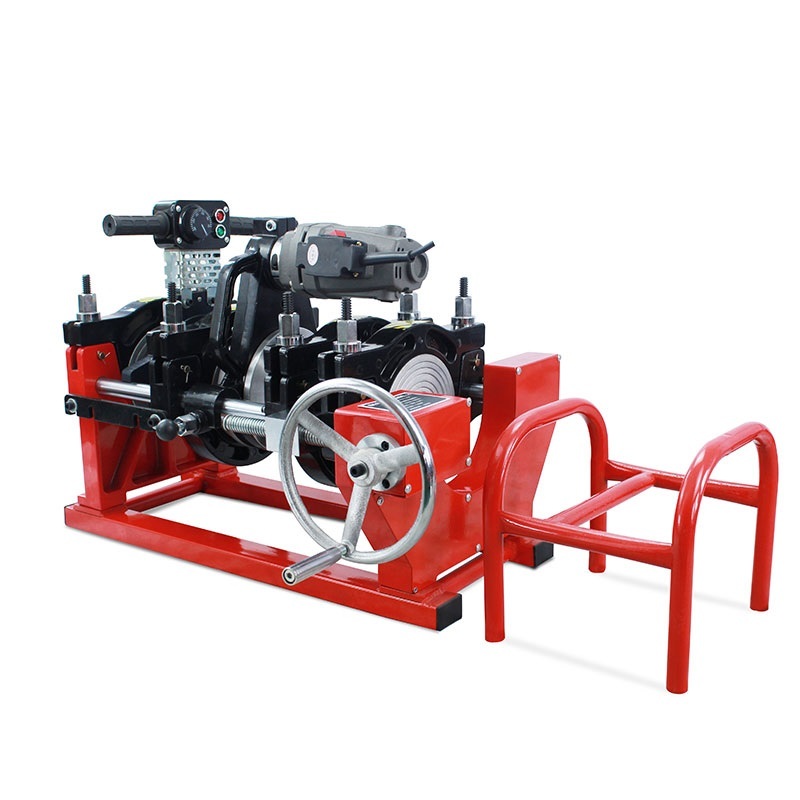

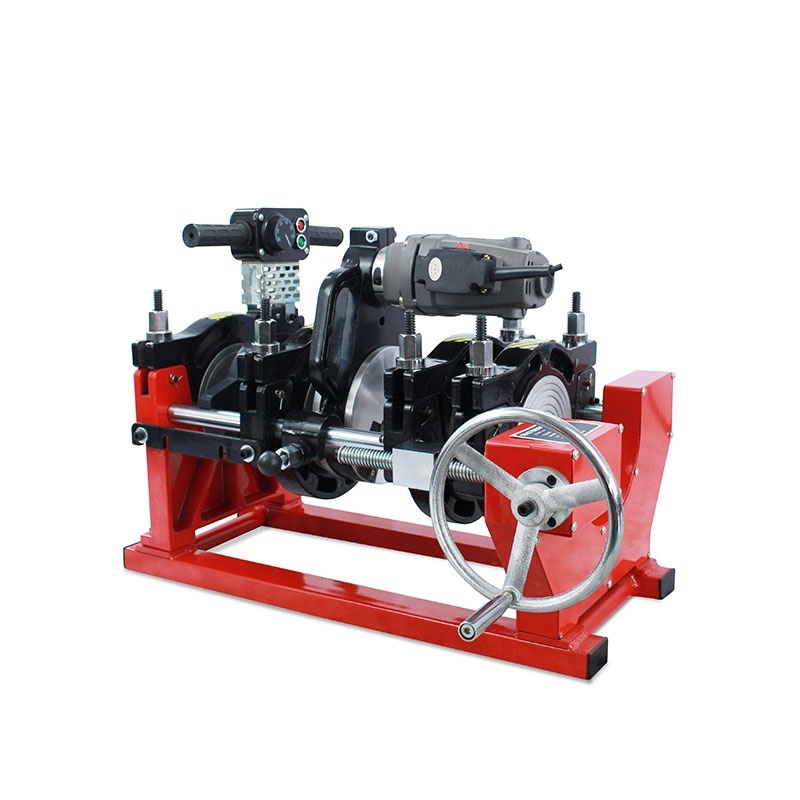

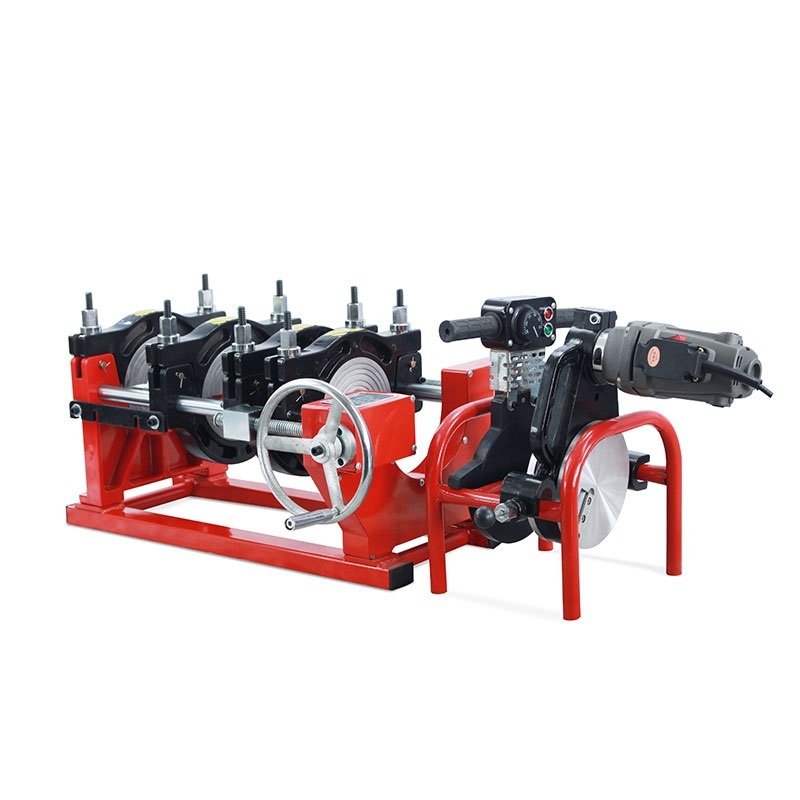

200‑4M Manual HDPE Butt Fusion Welding Machine for Plastic Pipe

Description

Key attributes

welding material

Polyethylene

voltage

220V

power (kw)

2.8KW

condition

New

frequency

50HZ

welding area

50mm-200mm

place of origin

Zhejiang, China

brand name

Yuhan

dimensions

50-200

usage

Weld plastic pipe fittings

weight (kg)

Model

YH-SM200-4M

Welding material

PE HDPE PP PVDF

Machine Type

Manual Butt Welder

Welding range

40mm,50mm,63mm,75mm,90mm,110mm,125mm,140mm,160mm

Color

Red

Certificate

CE ISO

MOQ

1pcs

OEM

Accepted

Package

Plywood Case

Packaging and delivery

Selling Units

Single item

Single package size

80X60X50 cm

Single gross weight

67 kg

Product Description

Application & Features.

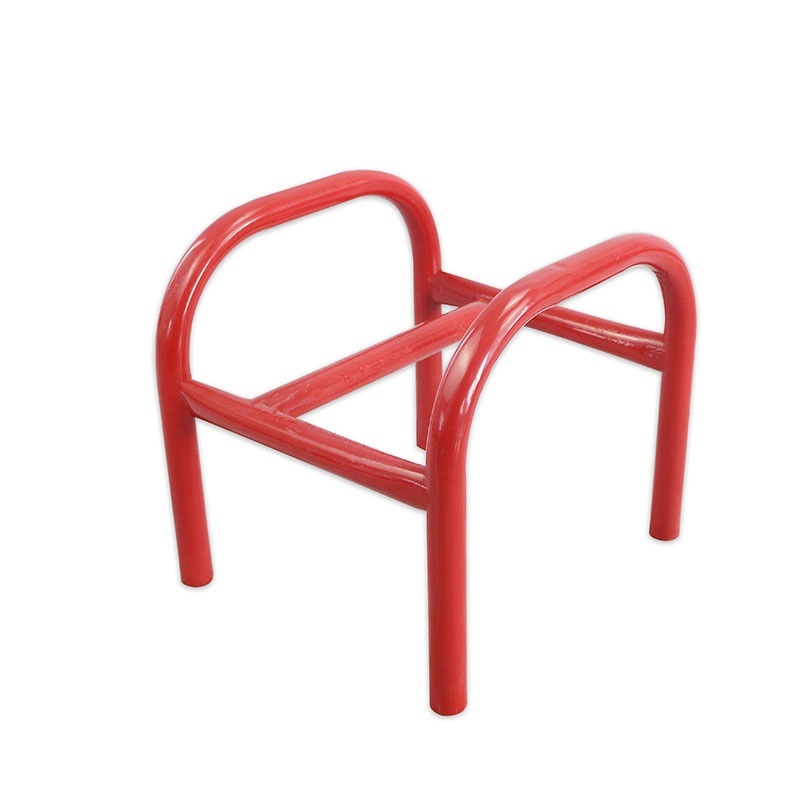

1: Consists of basic frame, milling cutter ,heating plate,support.

2: Working environment must be between -40℃~+40℃.

3: Pressure adjustable range:0-6Mpa.

4: Heating plate Max temperature:270℃.

5: Suitable for material of PE , PP , PVDF .

How to use

Welding Introduction For HDPE:

1. Fix the proper clamps on the machine rack.

2. Put HDPE pipes on the clamps and tighten the bolts.
3. Mill the end of the HDPE pipes with a milling cutter .

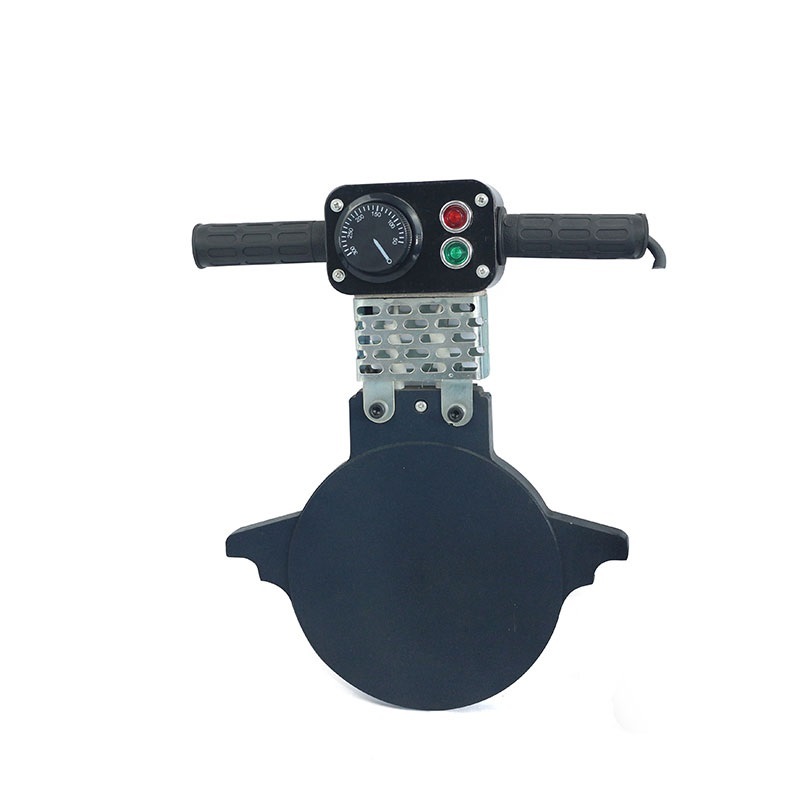

4. Put the heater plate on the machine rack and heat the pipes for proper time.

5. Remove the heater plate and connect the HDPE pipes.

Packing & Delivery

1. Standard export plywood case.

2. Our machine will be wrapped by plastic film,put into a plywood case at last. This type of packages is avoid getting rusty easily.
3. Professional transportation team to ensure the transportation time and safety.

Our Service:

1. we accept OEM& ODM.
2. We will supply all day (24 hours )service.
3. Sample order .
4. One year warranty from the date of receipt,in warranty time ,if non-artificial reason damaged can take old change new for free.
Out of warranty time , we still could offer maintenance service (charge for material cost)
5. Training video teaching
