Description

Product Introduction

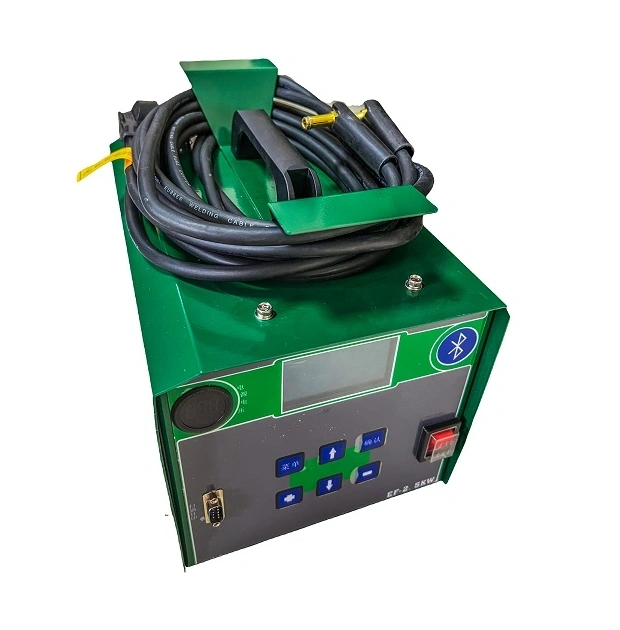

This machine is specifically designed for the connection of electrofusion fittings and PE pipes used for water and gas supply.

Its working principle is to energize the electrofusion fitting so that the embedded resistance wire heats up and melts the surface of the plastic pipe to achieve a seamless weld.

Electrofusion welding is a convenient and reliable connection method for high-density polyethylene (HDPE), polypropylene (PP), and other pipes. The electrofusion welding machine can be used with various electrofusion fittings to efficiently complete pipe connection work.

Key Features

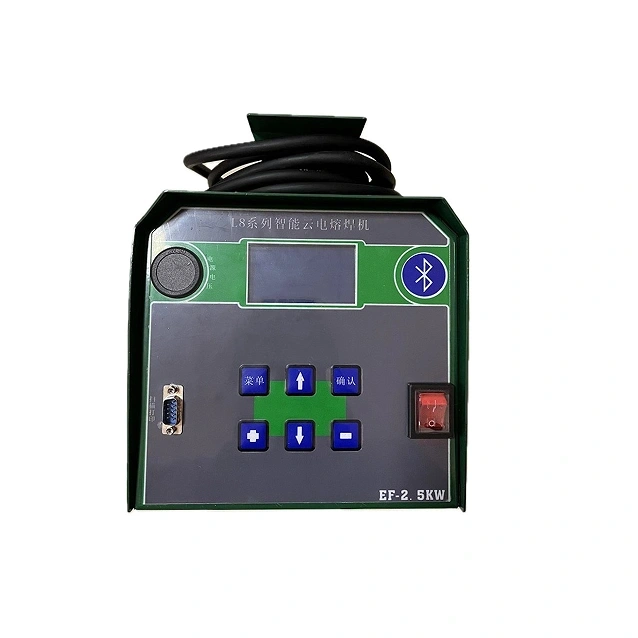

Designed according to the ISO9001:2008 electrofusion welder international standard. A high-level MCU is used as the control core, equipped with an LCD display where all welding parameters can be monitored.

Lightweight & Portable: Easy to operate in various working environments.
Real-Time Monitoring: Monitors weld status continuously; abnormal welding processes can be terminated immediately for safety.
Built-in Memory: Automatically records and stores more than 500 welding logs.
Data Export: Welding records can be downloaded to a USB flash disk via the USB interface (Optional Function).
Error-Free Wiring: Simple and intuitive welding wiring design to avoid connection mistakes.

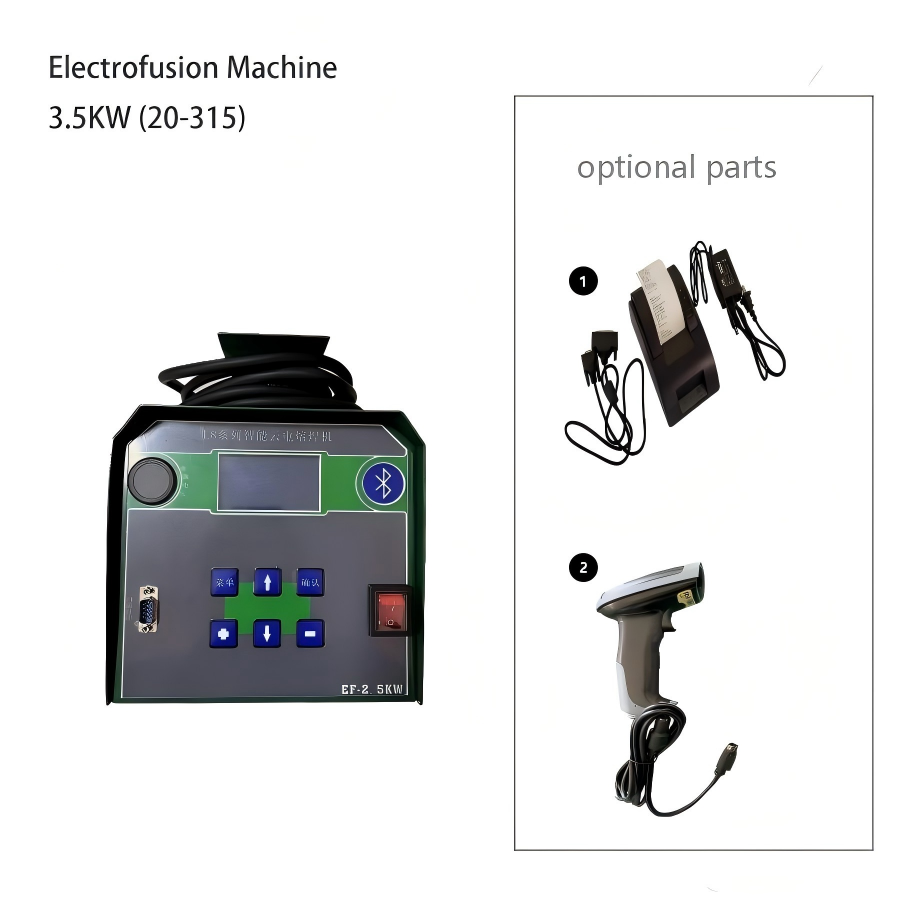

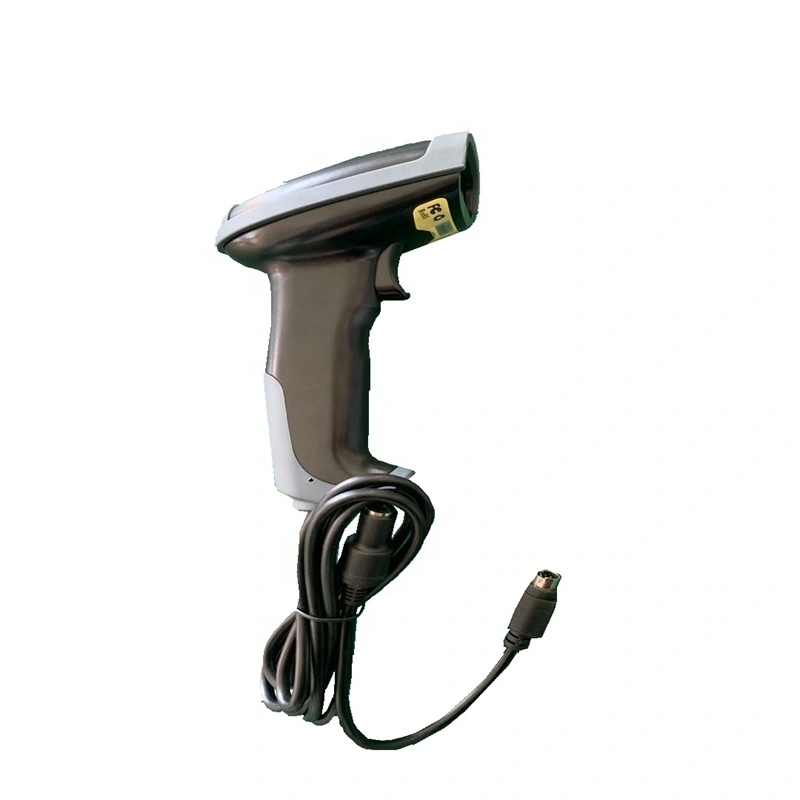

Dual Parameter Input: Supports both manual setting and automatic reading via a barcode scanner.

Technical Information

Specification	Details

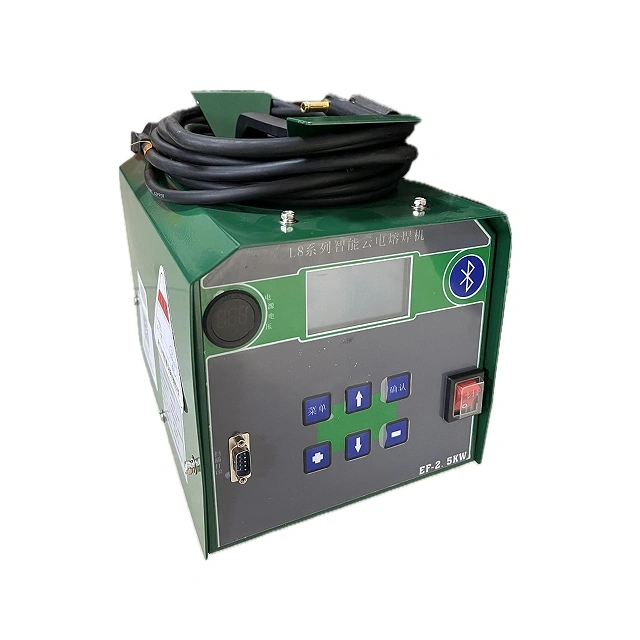

Product Name	3.5KW Electrofusion Welding Machine
Welding Size	20mm - 315mm
Suitable Material	PE / PP / PVDF
Input Voltage	190V~240V
Output Voltage	10V-48V
Output Power	3.5KW
Frequency	40-60HZ
Total Weight	35 kgs
Single package size	45X65X55 cm
