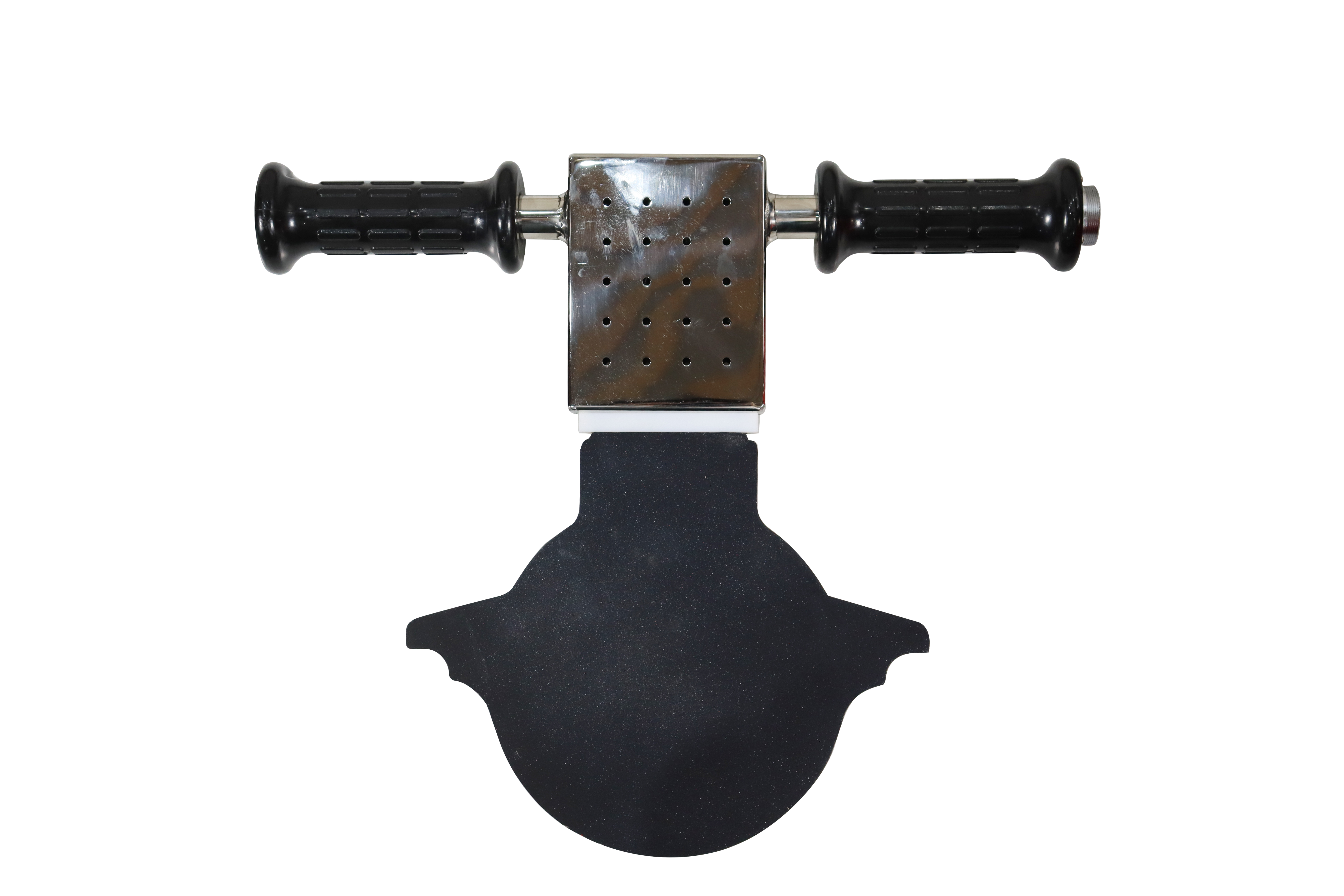

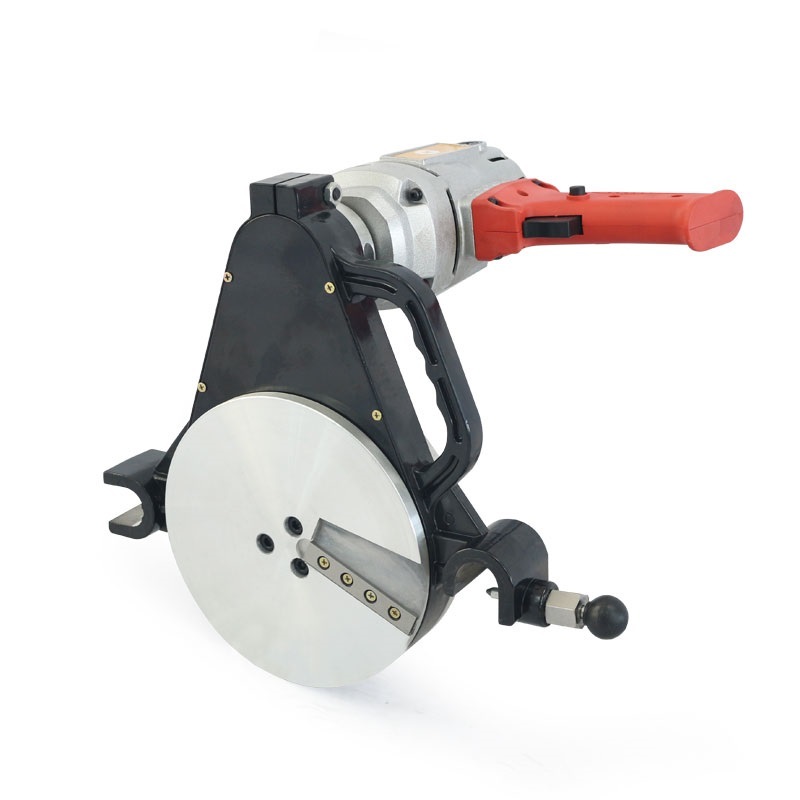

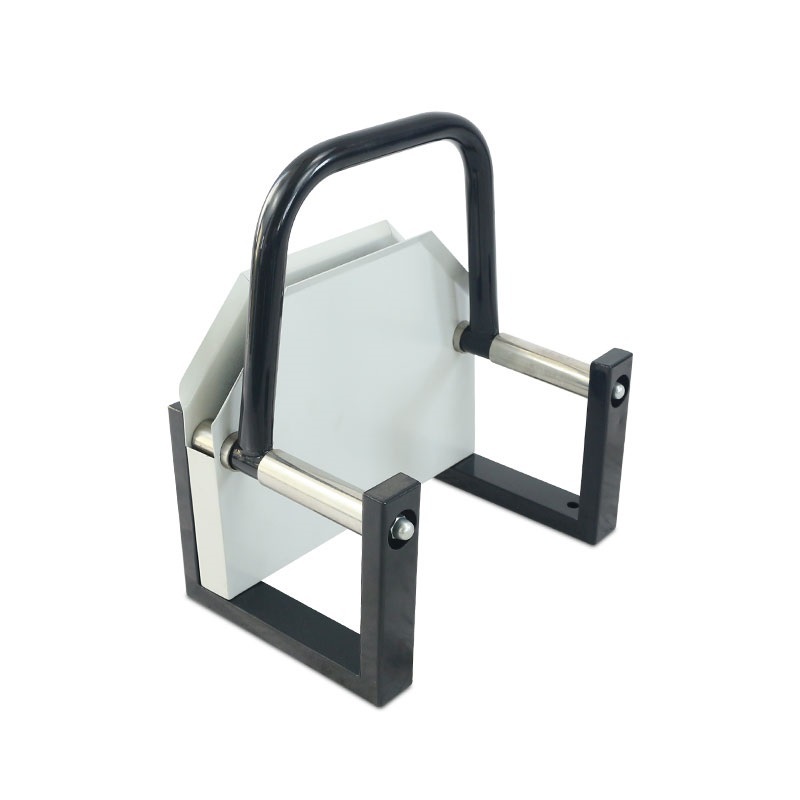

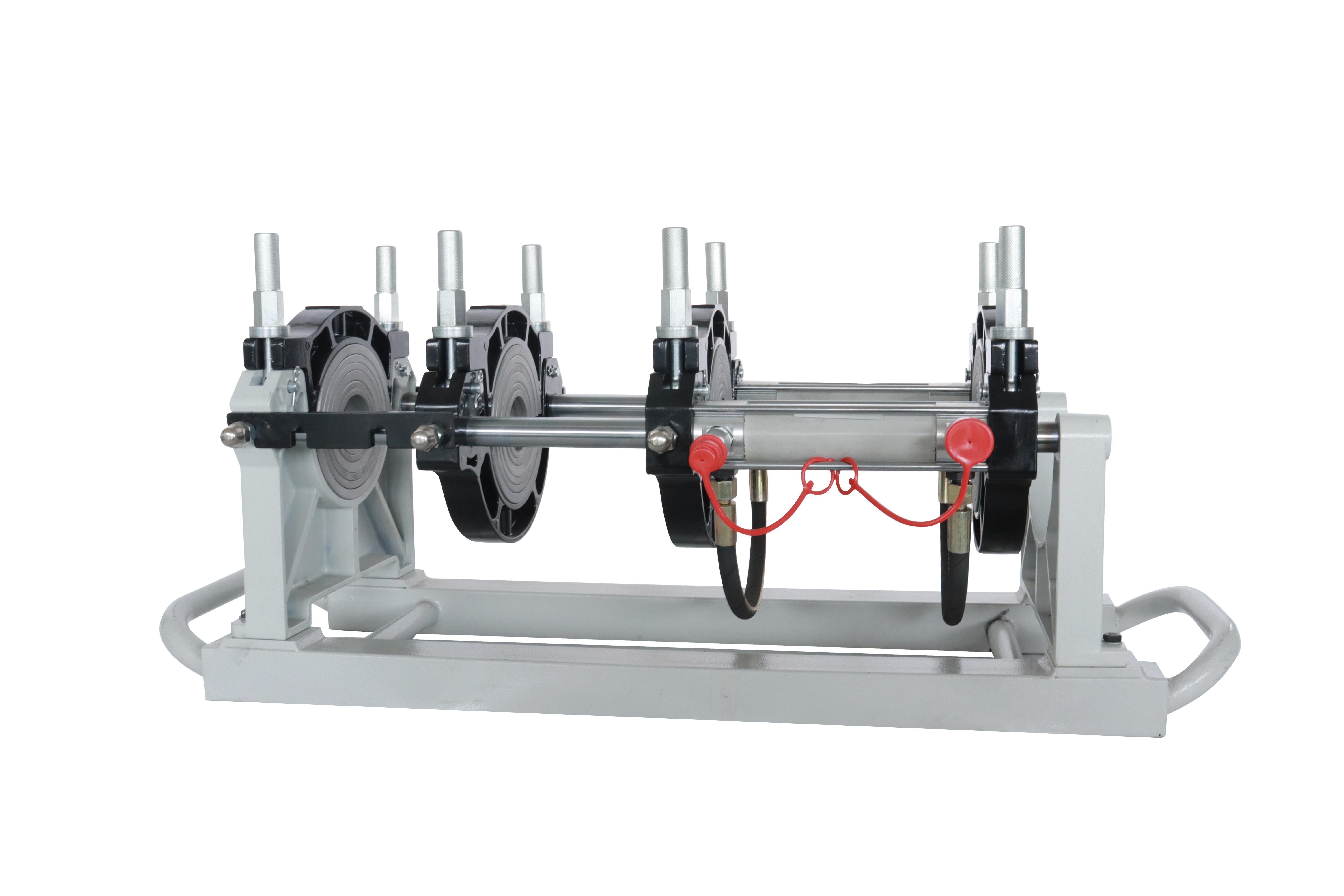

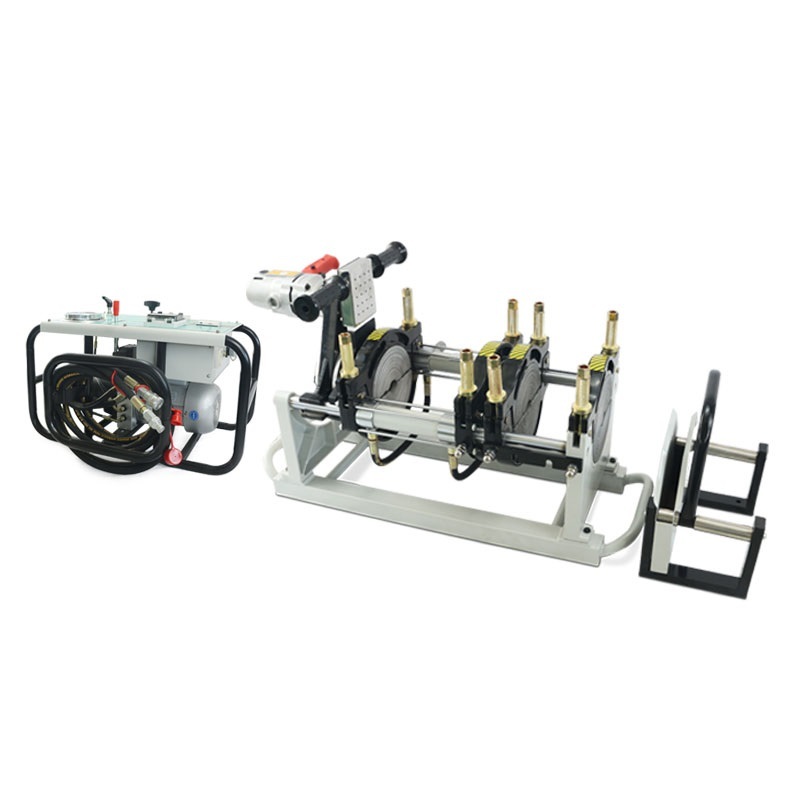

☻ Consists of basic frame.milling cutter ,heating plate, support. ☻ Working environment must be between-40℃~+40℃. ☻ Pressure adjustable range:0-6 Mpa. ☻ Heating plate Max.temperature :270℃. ☻ Suitable for material of PE ,PP, PVDF. ☻ Welding range: 40mm,50mm,63mm,75mm,90mm,110mm,125mm,140mm,160mm ☻ Working Voltage : 220V ,50HZ ☻ Heating plate power : 1KW ☻ Cutter power：0.9KW

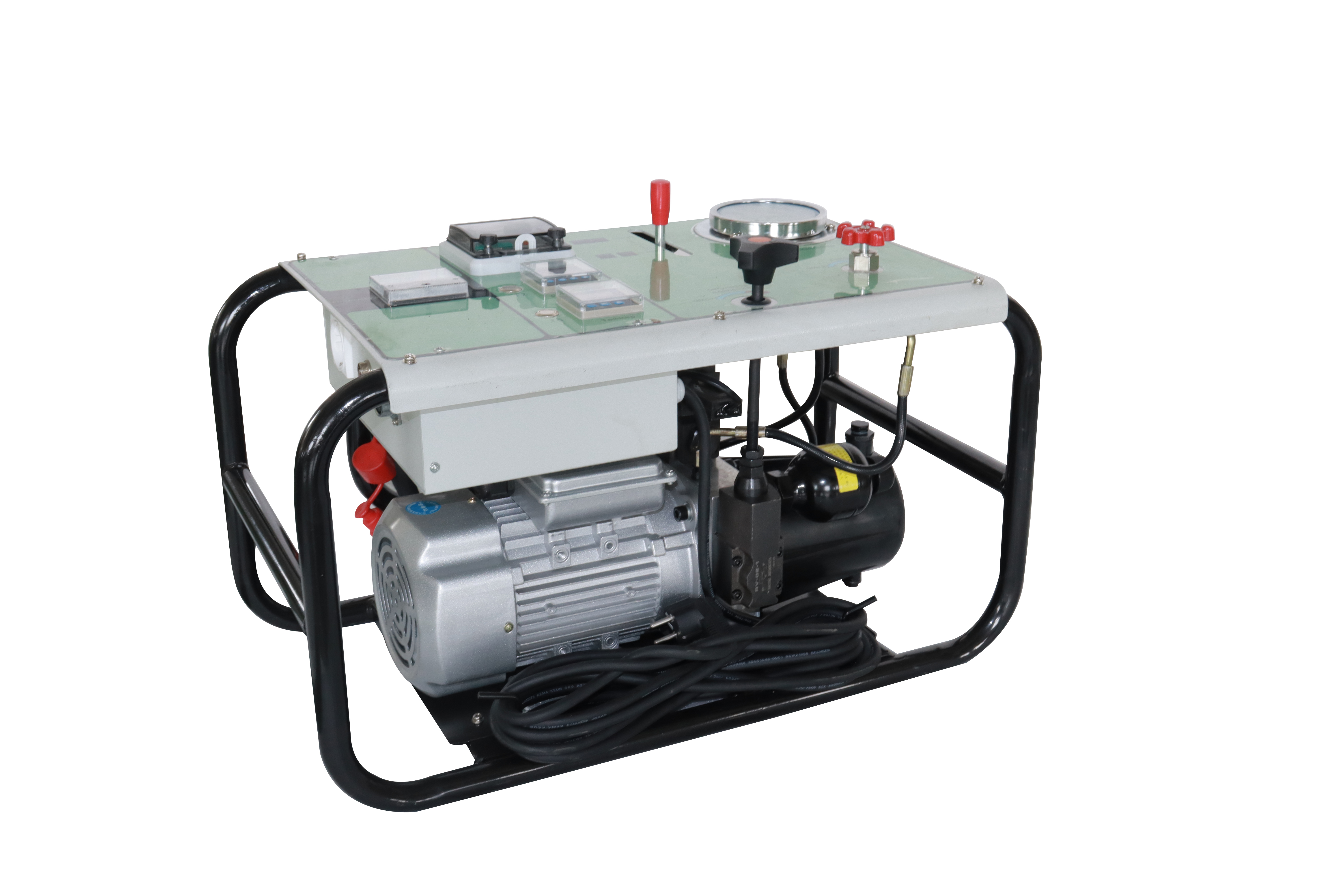

☻ Hydraulic unit power：0.75KW ☻ Total power : 2.65KW
How to use
Welding Introduction For HDPE: 1. Fix the proper clamps on the machine rack. 2. Put HDPE pipes on the clamps and tighten the bolts. 3. Mill the end of the HDPE pipes with the facer. 4. Put the heater plate on the machine rack and heat the pipes for proper time. 5. Remove the heater plate and connect the HDPE pipes.
Our Service:
1. we accept OEM& ODM. 2. We will supply all day (24 hours )service. 3. Sample order . 4. One year warranty from the date of receipt,in warranty time ,if non-artificial reason damaged can take old change new for free. Out of warranty time , we still could offer maintenance service (charge for material cost) 5. Training video teaching.
Packing & Delivery
1. Standard export plywood case.
2. Our machine will be wrapped by plastic film,put into a plywood case at last. This type of packages is avoid getting rusty easily. 3. Professional transportation team to ensure the transportation time and safety.
