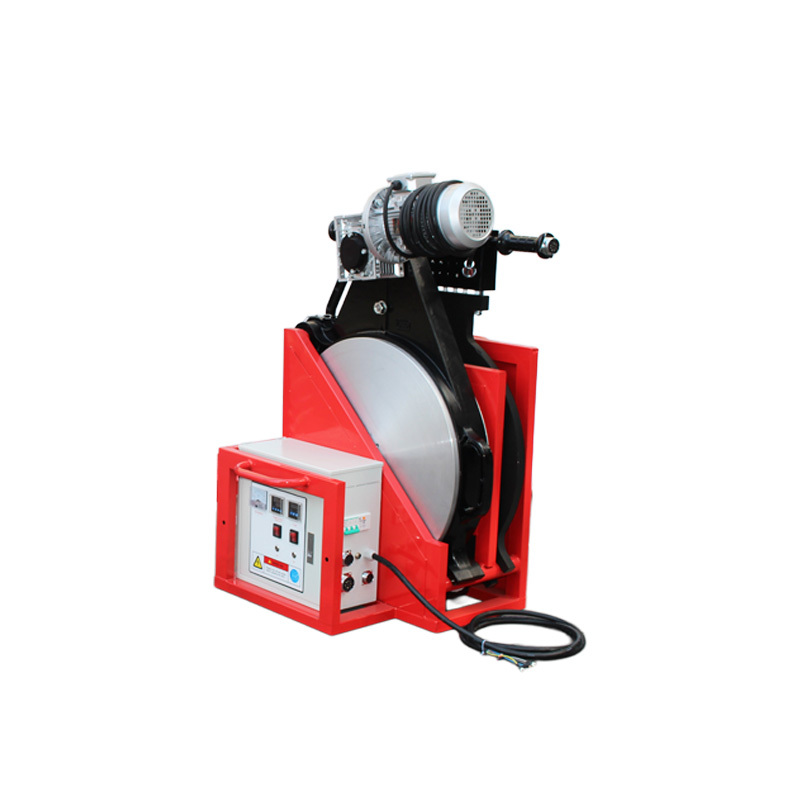

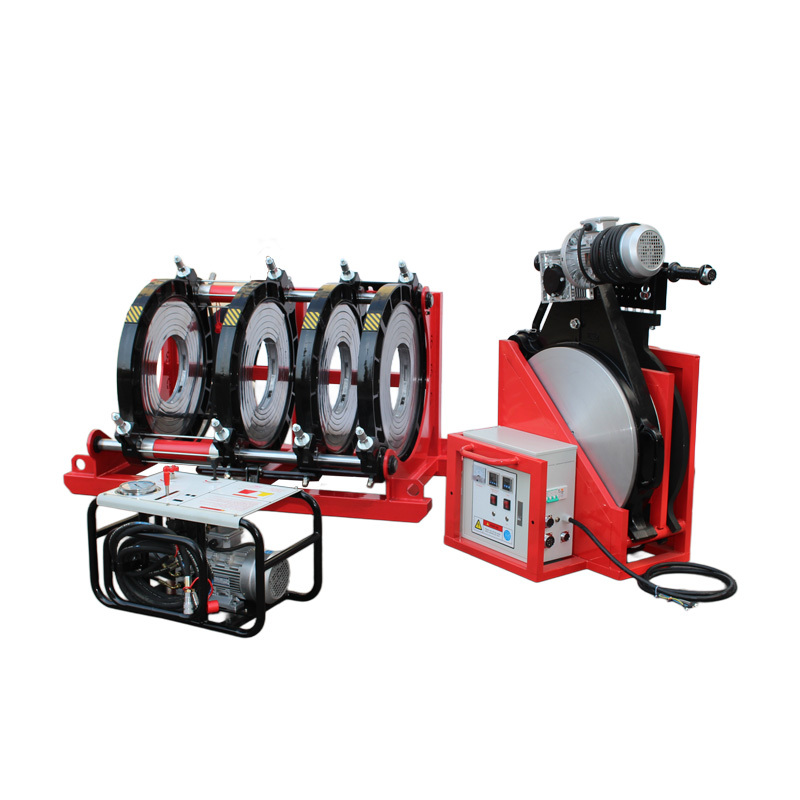

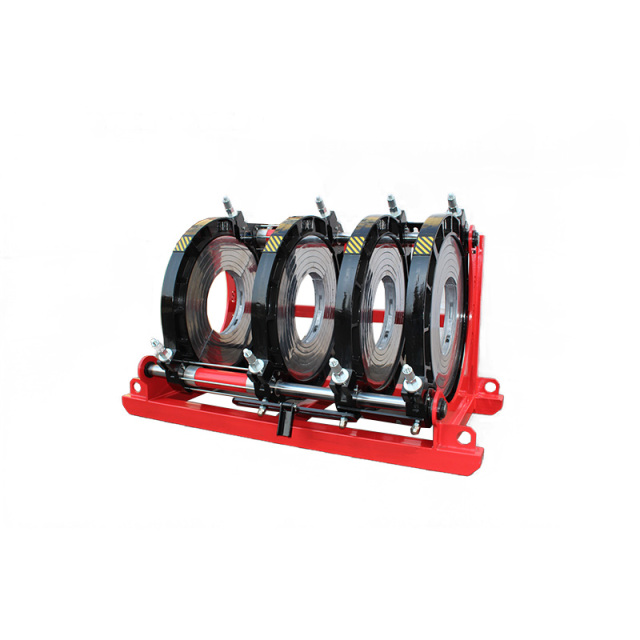

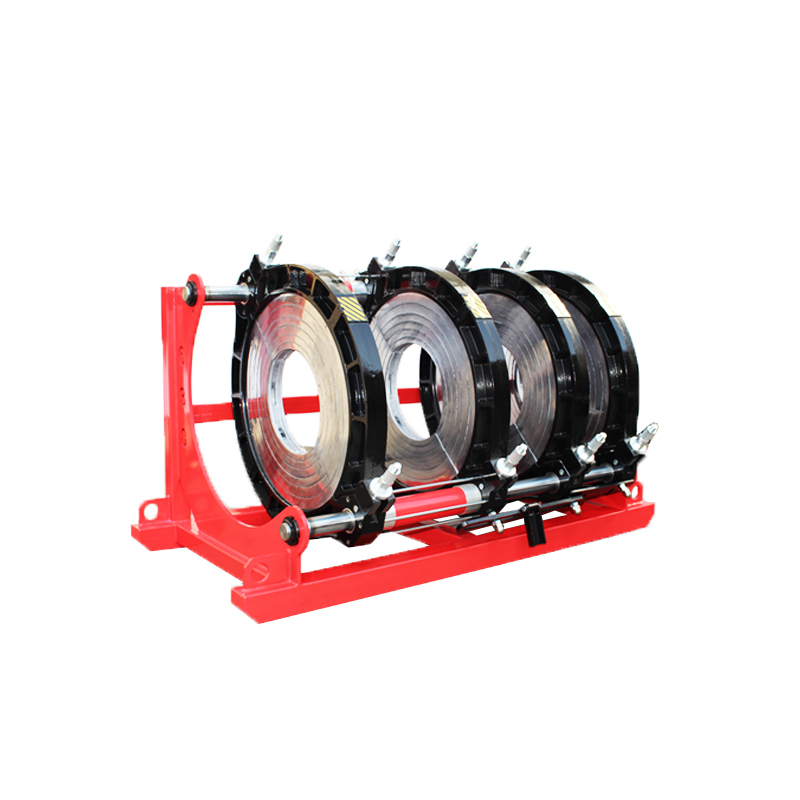

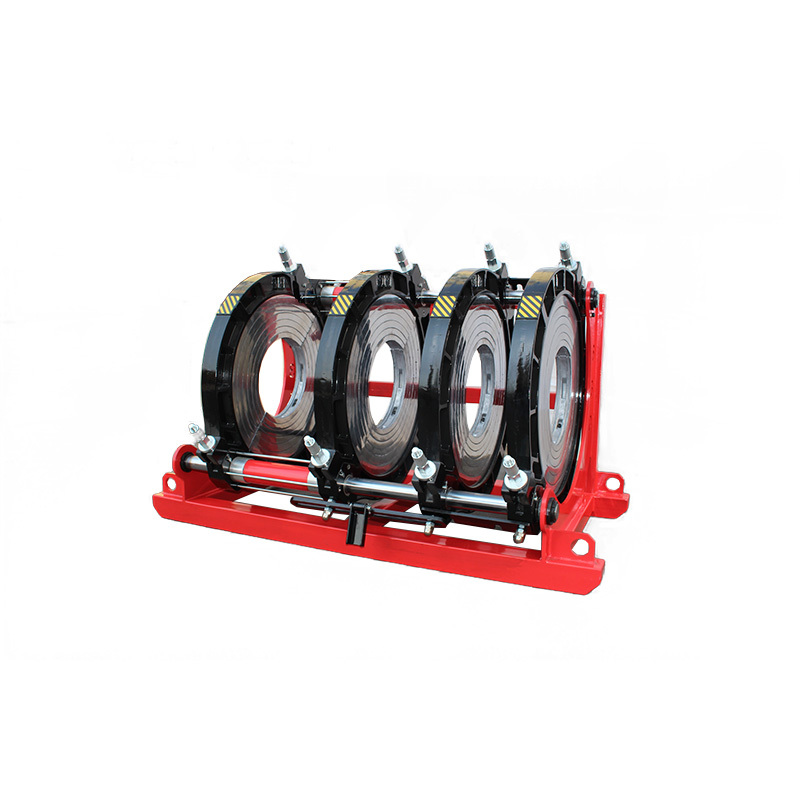

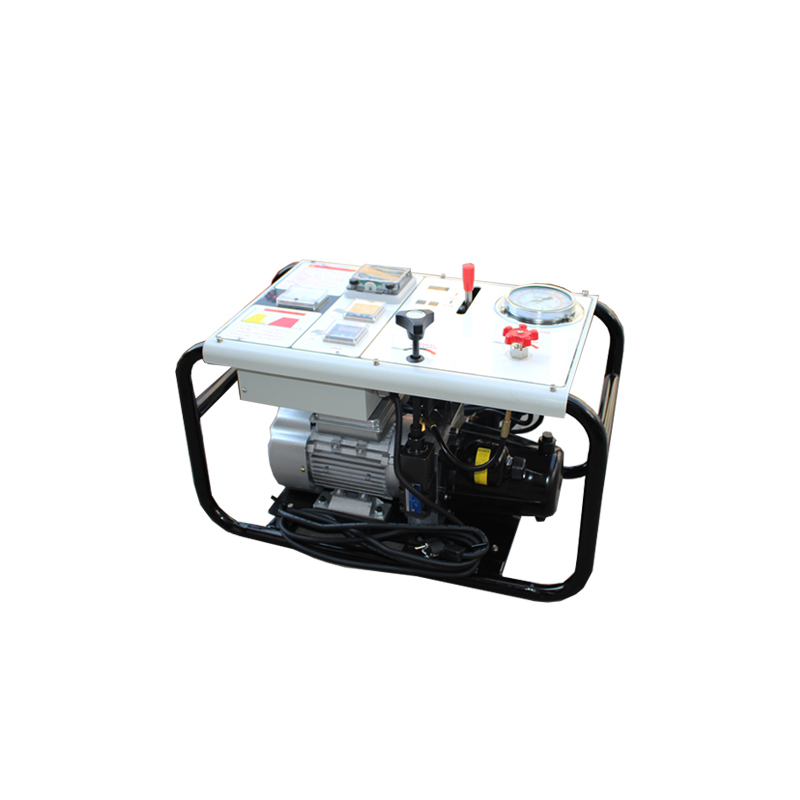

HDPE 500mm Automatic Pipe Welding Machine with Good Quality Pipe Welding Machine

Description

Key attributes

welding material

Polyethylene

voltage

380V

power (kw)

9.5KW

condition

New

frequency

50HZ-60HZ

welding area

180mm-500mm

place of origin

Zhejiang, China

brand name

Yuhan

usage

Plastic Welding

weight (kg)

480

Model

HJC500

Color

White+Black

Welding material

HDPE PP PE PVDF

Welding range

180mm,200mm,225mm,250mm,280mm,315mm,355mm,400mm,450mm,500mm,560mm

Certificate

CE ISO

MOQ

1pcs

OEM

Accepted

Package

Plywood Case

Type

Hydraulic

Power

9.5KW/380V

Packaging and delivery

Selling Units

Single item

Single package size

XX cm

Product Description

Application &Features:

1.Consist of basic frame, milling cutter ,heating plate, hydraulic unit ,electric unit and support .2.Working environment must be
between -40℃~+40℃
3.Pressure adjustable range :0~10Mpa.
4. Heating plate Max. temperature :270℃
5.Suitable for material of PE ,HDPE ,PP, PVDF

Easy to use :
1.The machine with simple structure can be operates by one person , it is suitable for use under complex conditions.

2. Welding position can transform that it is covenient for welding all kinds of pipe fittings.

Specification

item	value
Place of Origin	China
	Zhejiang
Brand Name	Yuhan
Condition	New
Voltage	380V
Frequency	50HZ-60HZ
Usage	Plastic Welding
Warranty	2 years
	Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Key Selling Points	Easy to Operate
Applicable Industries	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining, Other
Weight (KG)	480KG
Power (kW)	9.5KW
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Model	HJC500
Color	as the picture
Welding material	HDPE PP PE PVDF
Welding range	200mm,225mm,250mm,280mm,315mm,355mm,400mm,450mm,500mm
Certificate	CE ISO
MOQ	1pcs
OEM	Accepted
Package	Plywood Case
Type	Hydraulic
Power	9.5KW/380V

Welding Introduction For HDPE:

1. Fix the proper clamps on the machine rack.

2. Put HDPE pipes on the clamps and tighten the bolts.

3. Mill the end of the HDPEpipes with the facer.

4. Put the heater plate on the machine rack and heat the pipes for proper time. 5. Remove the heater plate and connect the HDPE pipes.
