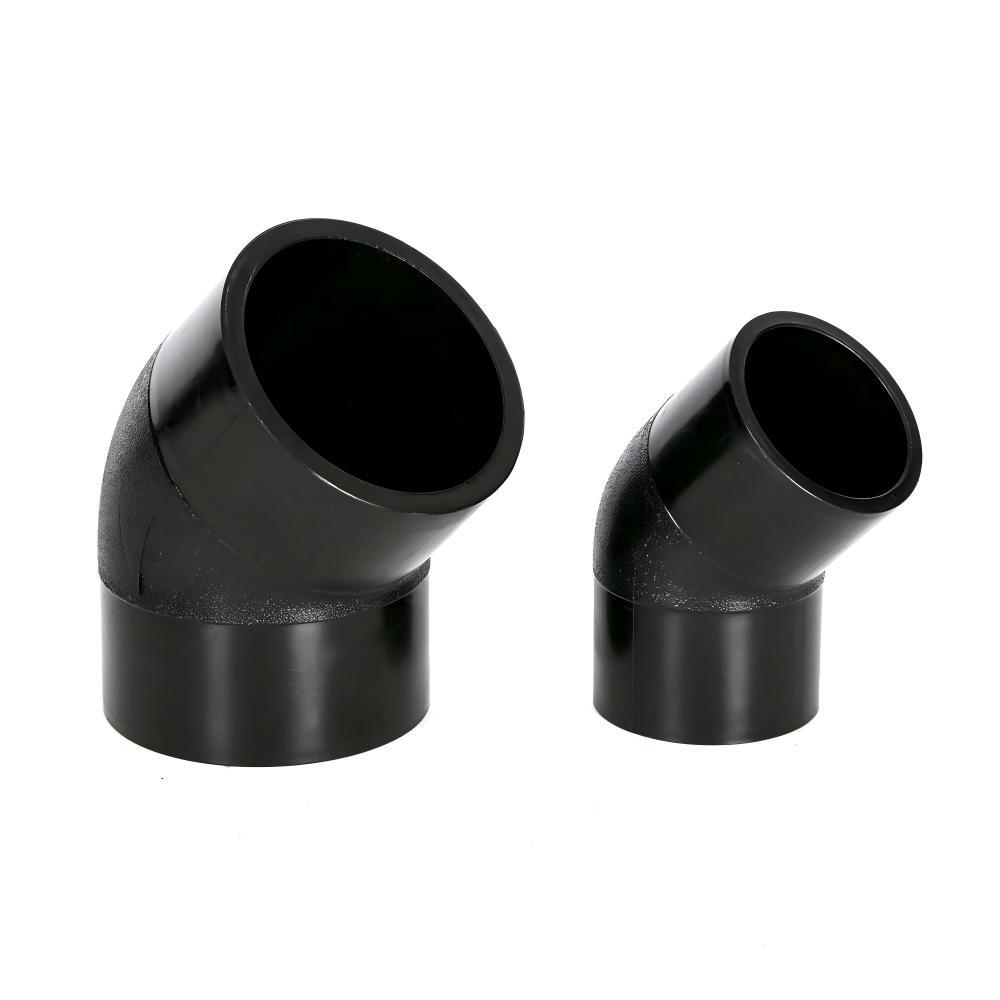

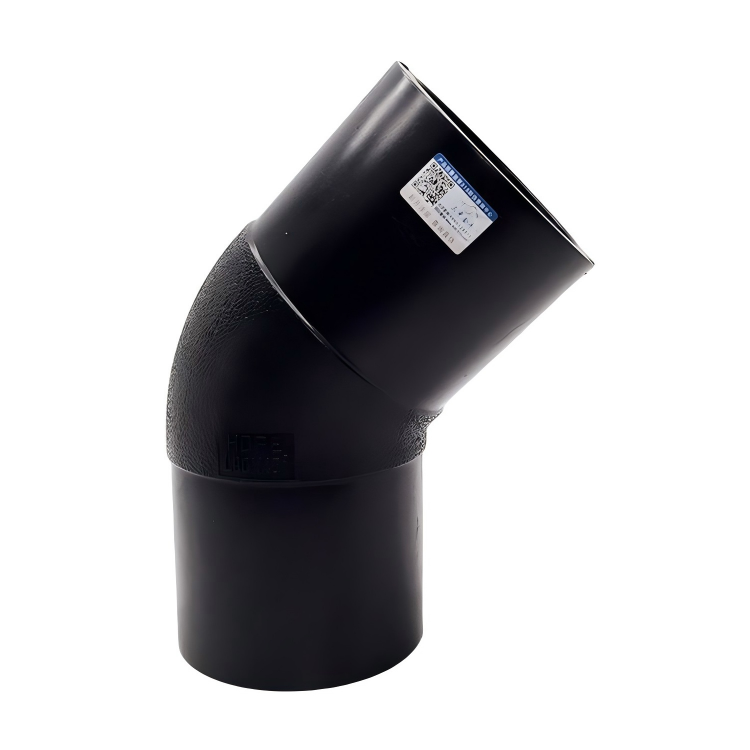

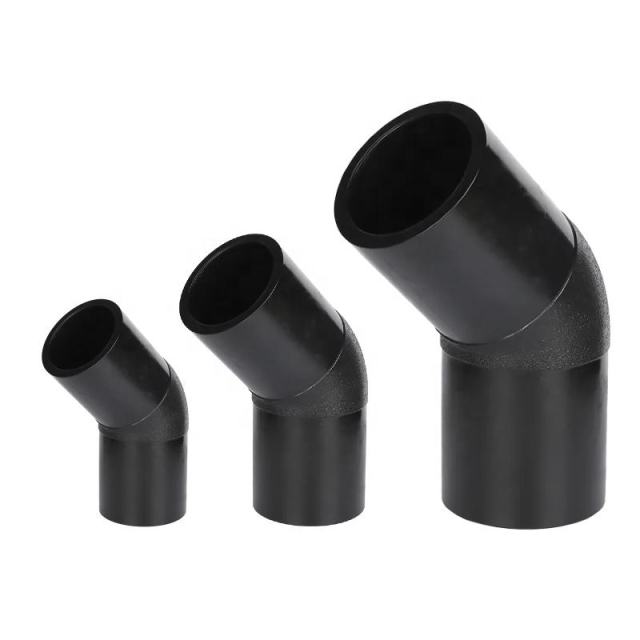

PE100 SDR11/ SDR17 Butt Fusion Injection Mold 45 Degree Elbow/Bend HDPE Pipe Fittings

Key Details for Butt Fusion Fittings

• Common Materials: HDPE (High-Density Polyethylene), specifically premium PE100 or PE80.
• Dimensions Range: Widely available in standard sizes from 63mm up to 1600mm (OD - Outside Diameter).
• Secure Connection: Involves heating components to the melting point using a specialized butt fusion machine to ensure a highly leak-proof, high-pressure-resistant permanent joint.
• Corrosion-Resistant: Exceptional chemical resistance ensures superior longevity even in aggressive soils or harsh environments.

Wide Application

• Municipal Tap Water Supply Project

• Agricultural Farm & Greenhouse Irrigation

• Natural Gas Conveyance Pipeline System

• Sewage Treatment & Drainage Engineering

• Chemical Industry Corrosion-resistant Pipeline

• Mine & Industrial Water Circulation System

Technical Specification

Specification	Details
Product Name	HDPE Butt Fusion 45 degree Elbow
Material	PE100
Standard	ISO4427
Technic	Injection

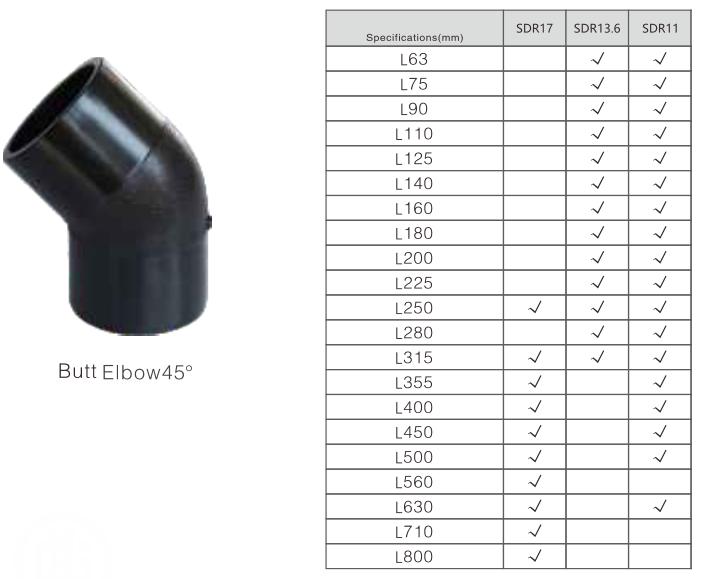

Sizes	63mm - 800mm
Pressure	PN16 (SDR11) / PN12.5(sdr13.6)/PN10 (SDR17)
Packing	Nylon Bags

Factory Profile

Packing & Shipping

•

Inner Package: Each product is individually packaged in clean, protective PE bags to maintain standard hygienic and anti-dust criteria during transit.

•

Sample Delivery: Rapid worldwide premium express via reputable services including DHL, TNT, and EMS.

•

Bulk Cargo Freight: Safely handled via heavy commercial shipping through specialized sea or land networks.
