Creates a permanent joint that is as strong as the pipeline itself.
Reduced risk of leaks during long-term operations compared to mechanical joints.
Perfectly suitable for both tough in-trench field conditions or workshop fabrication.
| Specification | Details |
|---|---|

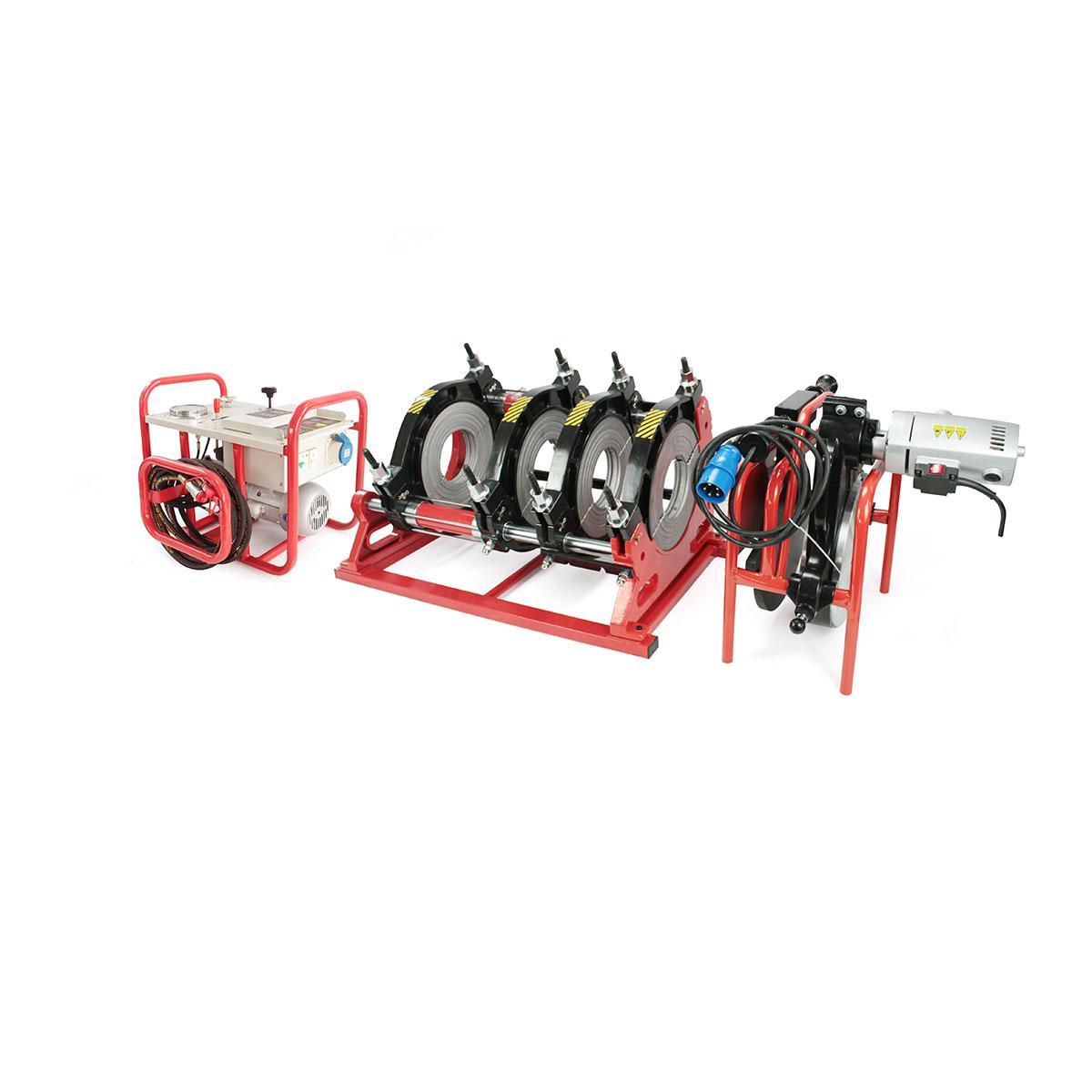

| Product Name | Hydraulic Butt Fusion Machine 90-315 |
| Welding Size | 90mm - 315mm |
| Working Environment Temp. | -40℃ ~ +40℃ |
| Suitable Materials | PE / PP / PVDF |
| Heating Plate Max Temp. | 270℃ |
| Temp. Deviation in Surface | ±5℃ |
| Max Tolerance of Jointing | 0.3mm |
| Max Working Pressure (Hydraulic) | 6 Mpa |
| Working Voltage / Frequency | 220V / 50-60HZ |
| Motor Power of Hydraulic Unit | 0.75 KW / 220V |
| Power of Heating Plate | 3.0 KW / 220V |
| Power of Milling Cutter | 2.5 KW / 220V |
| Total Power | 6.25 KW |
| Gross Weight | 185 kgs |
Heavy-duty alignment frame with quick-clamping inserts.
Teflon-coated plate providing extremely uniform surface heating.
Electric planning device used to shave and trim pipe ends for a clean, absolute flush fit.
Advanced system providing precise, continuous pressure adjustment for consistent joints.
Protective chassis station holding the heating plate and planing tool securely on site.
Export Standard Package: Each machine unit is securely crated inside a heavy-duty, sea-freight standard plywood case to assure perfect damage-free arrival during long-haul transport.
Flexible Shipping Methods: Reliable international bulk cargo transportation options provided by either Sea freight or regional Land trucking routes.
