Creates a permanent joint that is as strong as the pipeline itself.
Significantly reduced risk of leaks compared to traditional mechanical joints.

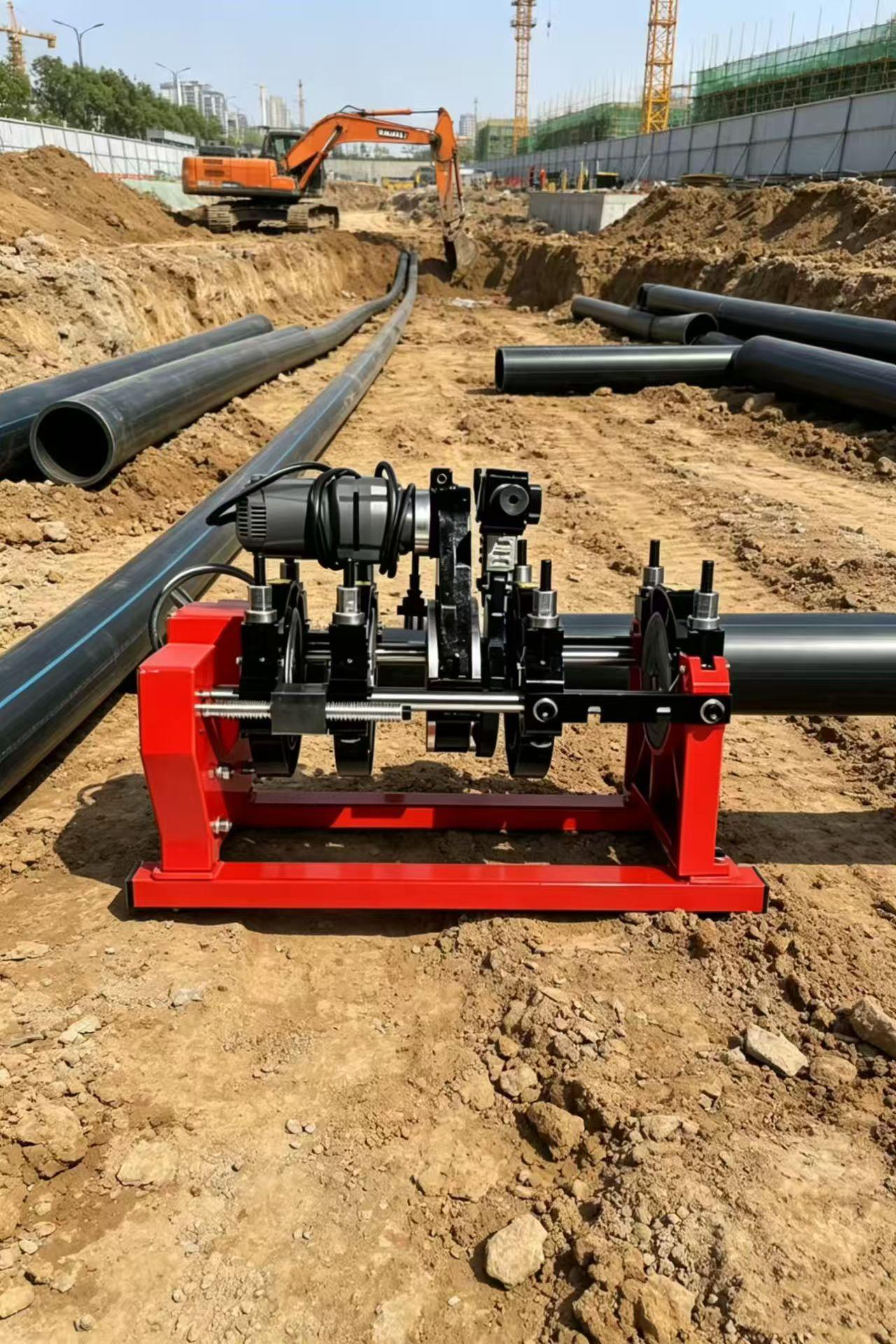

Perfectly suitable for both tough in-trench field conditions or workshop fabrication.
| Specification | Details |
|---|---|

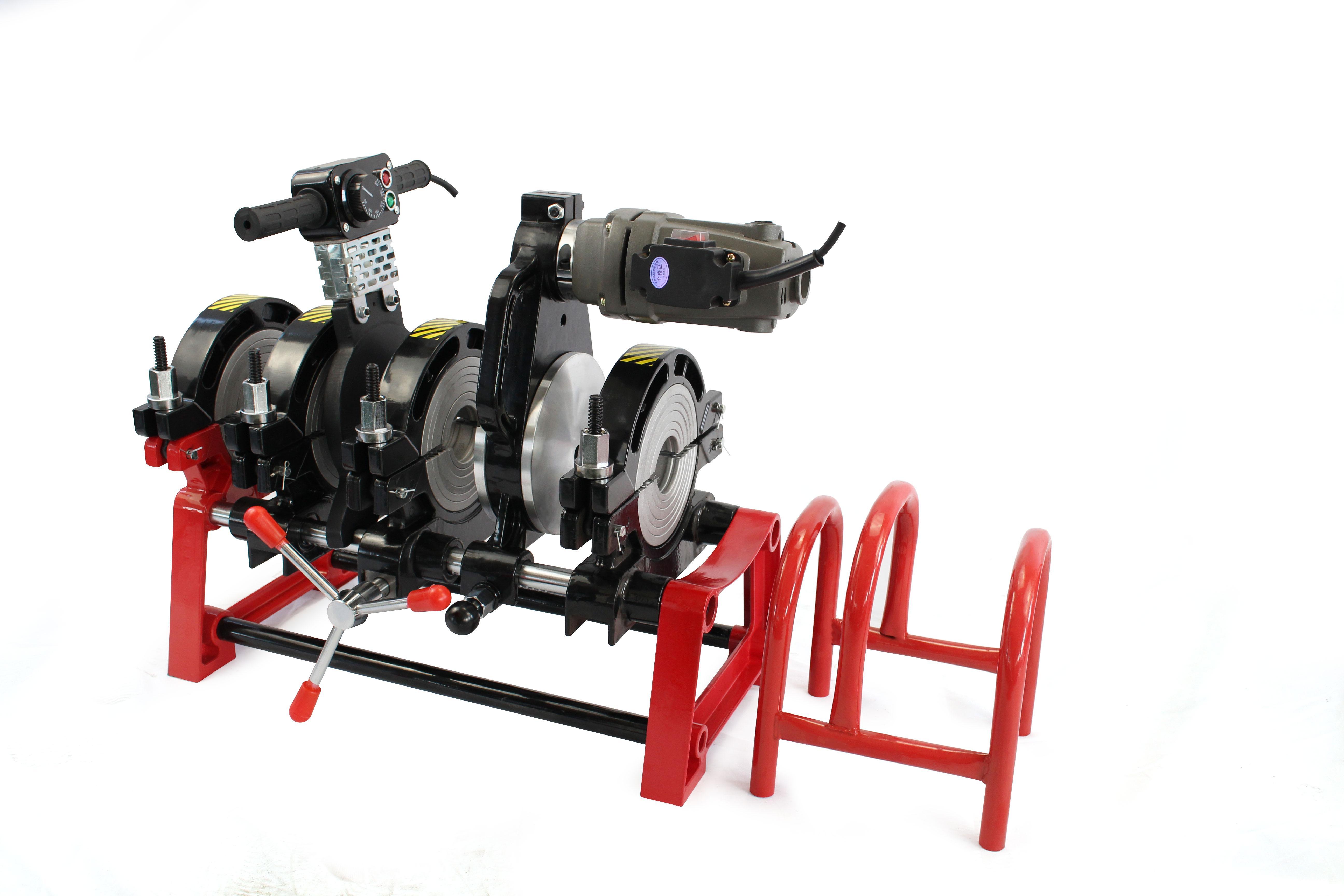

| Product Name | Manual Butt Fusion Welding Machine 63-200 |
| Welding Size | 63mm - 200mm |
| Working Environment Temp. | -40℃ ~ +40℃ |
| Suitable Materials | PE / PP / PVDF |
| Heating Plate Max Temp. | 270℃ |
| Temp. Deviation in Surface | ±5℃ |
| Max Tolerance of Jointing | 0.3mm |
| Max Working Pressure (Hydraulic) | 6 Mpa |
| Working Voltage / Frequency | 220V / 50-60HZ |
| Power of Heating Plate | 2.0 KW / 220V |
| Power of Milling Cutter | 1.2 KW / 220V |
| Total Power | 3.2 KW |
| Gross Weight | 50 kgs |
Robust structure ensuring stable pipe alignment and clamping.
Teflon-coated heating element with precise, even surface temperature control.
Used to shave and perfectly trim pipe ends to ensure an absolute seamless fit before fusion.
Heavy-duty support unit providing a safe place for the heating plate and planning tool.
Export Standard Package: Each machine unit is strictly packaged inside a durable, seaworthy export standard plywood case to guarantee full safety during long-distance transit.
Flexible Shipping Methods: Reliable freight and corporate solutions optimized by either Sea cargo or Land transportation lines.
